Gigabyte B760M H DDR4 (rev. 1.0) M-ATX Gaming Motherboard

$36.24

Original: $103.54

-65%

Gigabyte B760M H DDR4 (rev. 1.0) M-ATX Gaming Motherboard—

$103.54

$36.24

The Story

Gigabyte B760M H DDR4 (rev. 1.0) M-ATX Gaming Motherboard

6+1+1 Phases Hybrid Digital VRM Design

6+1+1 Phases Low RDS(on) MOSFETs

Premium Choke and Capacitors to improve transient response and minimize oscillation

Connectivity

GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network and storage.

Personalization

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

PCIe EZ-Latch

Unlock the latch of the PCIe slot easily when you remove the graphics card in the PCIe slot.

Specifications:

CPU Socket	LGA1700
CPU Support	14th, 13th, and 12th Gen Intel Core, Pentium Gold, Celeron Processors
Chipset	Intel B760 Express Chipset
Memory	DDR4 3200/3000/2933/2666/2400/2133 MT/s, up to 64GB
Graphics	Intel HD Graphics (D-Sub, HDMI)
Audio	Realtek Audio CODEC, High Definition Audio
LAN	Realtek GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots	1 x PCIe x16 (4.0), 1 x PCIe x1 (3.0)
Storage Interface	1 x M.2 (PCIe 4.0), 1 x M.2 (PCIe 4.0), 4 x SATA 6Gb/s, RAID 0/1/5/10
USB Ports	6 x USB 3.2 Gen 1, 6 x USB 2.0/1.1
Internal Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	2 x system fan headers
	1 x RGB LED strip header
	2 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x S/PDIF Out header
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	1 x serial port header
	1 x Clear CMOS jumper
Back Panel Connectors	2 x USB 2.0/1.1 ports
	1 x D-Sub port
	1 x HDMI port
	4 x USB 3.2 Gen 1 ports
	1 x RJ-45 port
	3 x audio jacks
I/O Controller	iTE I/O Controller Chip
BIOS	AMI UEFI BIOS, 128 Mbit flash
H/W Monitoring	Voltage, Temperature, Fan speed, Water cooling flow rate
Unique Features	GIGABYTE Control Center (GCC), Q-Flash
Bundled Software	Norton Internet Security, LAN bandwidth management
Operating System	Windows 11 64-bit, Windows 10 64-bit
Form Factor	Micro ATX (23.0cm x 21.5cm)

Gigabyte B760M H DDR4 (rev. 1.0) M-ATX Gaming Motherboard - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

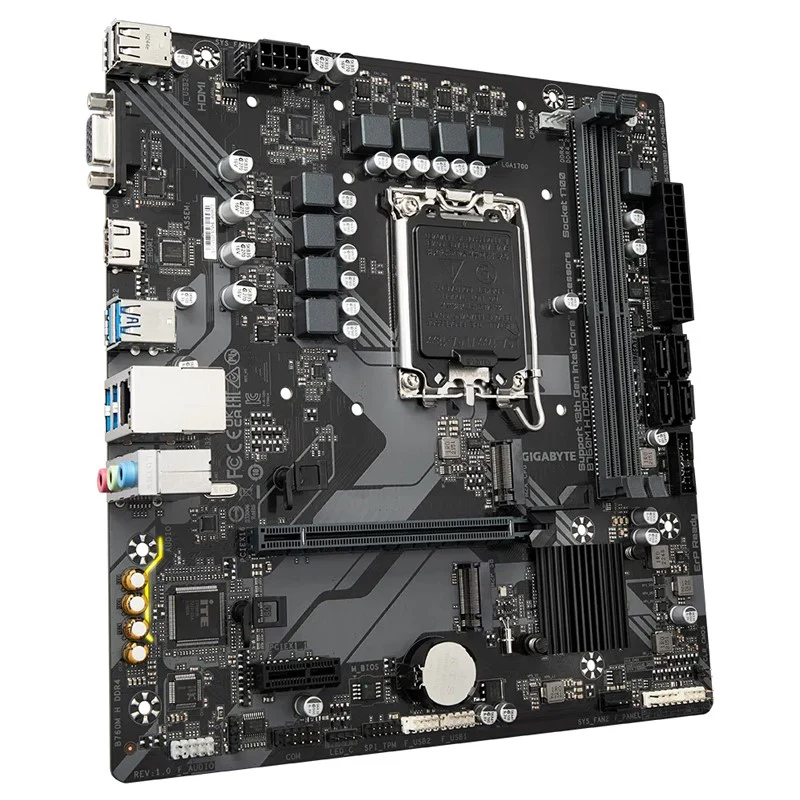

Gigabyte B760M H DDR4 (rev. 1.0) M-ATX Gaming Motherboard - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

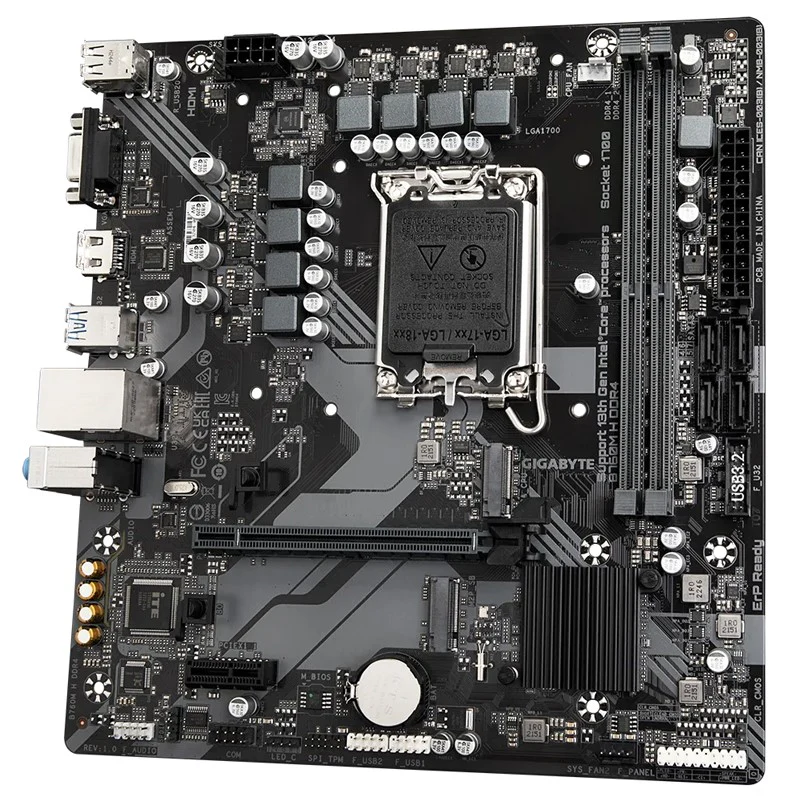

Gigabyte B760M H DDR4 (rev. 1.0) M-ATX Gaming Motherboard - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

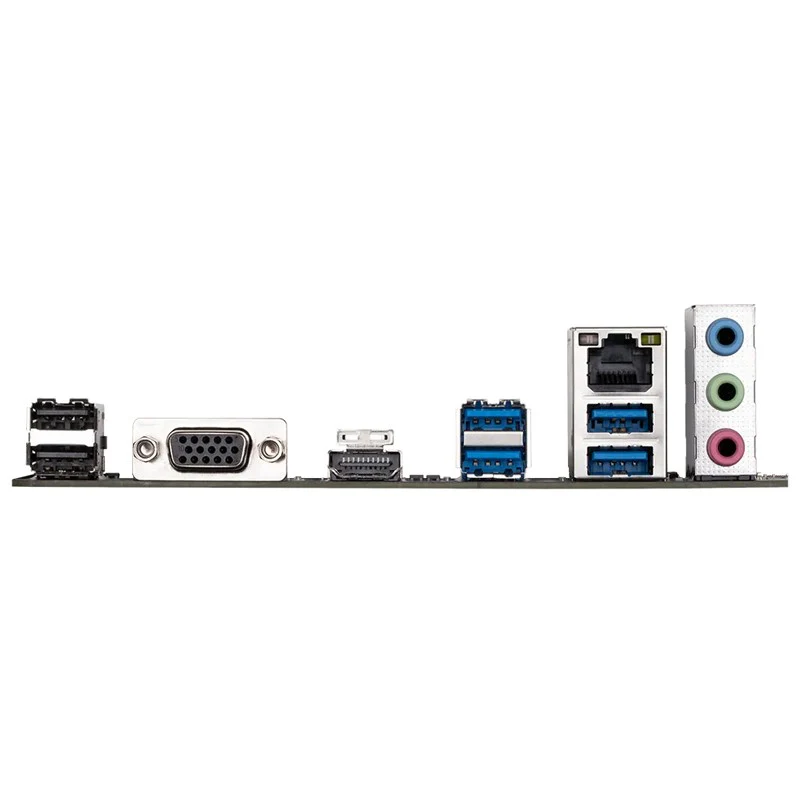

Gigabyte B760M H DDR4 (rev. 1.0) M-ATX Gaming Motherboard - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Gigabyte B760M H DDR4 (rev. 1.0) M-ATX Gaming Motherboard

6+1+1 Phases Hybrid Digital VRM Design

6+1+1 Phases Low RDS(on) MOSFETs

Premium Choke and Capacitors to improve transient response and minimize oscillation

Connectivity

GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network and storage.

Personalization

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

PCIe EZ-Latch

Unlock the latch of the PCIe slot easily when you remove the graphics card in the PCIe slot.

Specifications:

CPU Socket	LGA1700
CPU Support	14th, 13th, and 12th Gen Intel Core, Pentium Gold, Celeron Processors
Chipset	Intel B760 Express Chipset
Memory	DDR4 3200/3000/2933/2666/2400/2133 MT/s, up to 64GB
Graphics	Intel HD Graphics (D-Sub, HDMI)
Audio	Realtek Audio CODEC, High Definition Audio
LAN	Realtek GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots	1 x PCIe x16 (4.0), 1 x PCIe x1 (3.0)
Storage Interface	1 x M.2 (PCIe 4.0), 1 x M.2 (PCIe 4.0), 4 x SATA 6Gb/s, RAID 0/1/5/10
USB Ports	6 x USB 3.2 Gen 1, 6 x USB 2.0/1.1
Internal Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	2 x system fan headers
	1 x RGB LED strip header
	2 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x S/PDIF Out header
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	1 x serial port header
	1 x Clear CMOS jumper
Back Panel Connectors	2 x USB 2.0/1.1 ports
	1 x D-Sub port
	1 x HDMI port
	4 x USB 3.2 Gen 1 ports
	1 x RJ-45 port
	3 x audio jacks
I/O Controller	iTE I/O Controller Chip
BIOS	AMI UEFI BIOS, 128 Mbit flash
H/W Monitoring	Voltage, Temperature, Fan speed, Water cooling flow rate
Unique Features	GIGABYTE Control Center (GCC), Q-Flash
Bundled Software	Norton Internet Security, LAN bandwidth management
Operating System	Windows 11 64-bit, Windows 10 64-bit
Form Factor	Micro ATX (23.0cm x 21.5cm)
